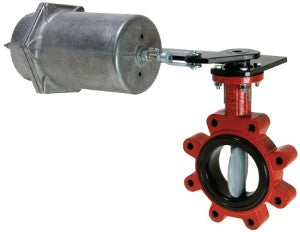

Schneider Electric VKF4-6220-221-L-13 Valve Actuator Assembly 3 in 2-Way Butterfly Valve

Product Description

The Schneider Electric VKF4-6220-221-L-13 is a reliable valve actuator assembly designed for efficient operation in a variety of settings. This assembly features a three-inch body size and a two-way butterfly valve configuration, specifically engineered for applications requiring controlled airflow. It includes a pneumatic actuator with proportional control, making it suitable for automation in HVAC systems, process control, and industrial settings.

• Body Size: 3 inches
• Flow Coefficient: 267 cv
• Close-Off Pressure: 175 PSI

Product Highlights

This product is essential for professionals in HVAC and industrial environments, offering a robust construction designed to handle various applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric

Technical Specifications

• Valve Type: Butterfly
• Connection Type: Flanged
• Body Material: Polyester coated cast iron
• Actuator Type: Pneumatic
• Control Signal: Proportional
• Disc Material: Ductile Iron - Nylon 11 Coated
• Protection Rating: NEMA 4
• IP Degree Of Protection: IP56
• Operating Fluid Temperature: -40 to 121 °C
• Ambient Air Temperature For Operation: -28.8 to 71.1 °C
• Loss of Power Position: Normally closed
• Mechanical Movement: Rotary
