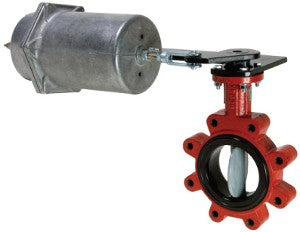

Schneider Electric VKF-6220-221-L-14 Valve Actuator Assembly 4 in 2-Way

Product Description

The Schneider Electric VKF-6220-221-L-14 is a valve actuator assembly designed for efficient control of flow in various applications. It features a four-inch body size and operates as a two-way butterfly valve. The actuator utilizes pneumatic control with a spring return feature. This unit is suitable for environments requiring reliable operation and high performance.

• Body Size: 4 inches
• Type: Butterfly Valve
• Connection: Flanged

Product Highlights

Utilizes pneumatic actuator for precise operation and has a close-off pressure rating of 175 PSI.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Valve Size: 4 inches
• Flow Coefficient: 496 cv
• Control Signal: 2 Position, Proportional
• Control Spring Range: 8 to 13 PSIG
• Material Disc: Ductile Iron - Nylon 11 Coated
• IP Rating: IP56
• Ambient Temperature Range: -28.8 to 71.1 °C
• Protection Rating: NEMA 4
