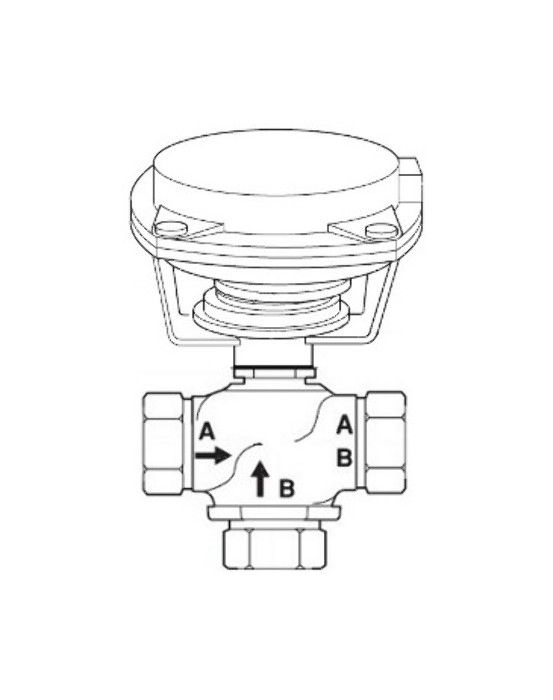

Schneider Electric VK4-7313-302-4-02 Globe Valve Assembly, 3 Way, 1/2 in.

Product Description

The Schneider Electric VK4-7313-302-4-02 is a globe valve assembly designed for precise regulation in various pneumatic systems. This valve features a three-way configuration, making it suitable for multiple applications including water, steam, and glycol systems. It is built to operate efficiently with a spring range of five to ten psi.

• High rangeability for fine control in pneumatic systems.
• Tight sealing minimizes energy loss during operation.
• Rugged aluminum housing for durability.

Product Highlights

Designed for reliability and efficiency, this globe valve assembly is essential for HVAC control and pneumatic applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Part Number: VK4-7313-302-4-02

Technical Specifications

• Service: Glycol 25 to 60%, Steam, Water
• Flow Characteristic: Modified Linear
• Operating Conditions: 20 F to 281 F (-7 C to 138 C)
• Diaphragm Area: 11 sq in.
• Stroke: 1/2 in.
• Air Connections: 1/8 in. FNPT
• Spring Range: 5 to 10 psi
• Cv Rating: 2.2
