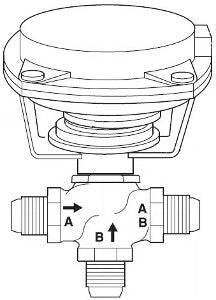

Schneider Electric VK-7332-303-4-04 Valve Actuator Assembly

Product Description

The Schneider Electric VK-7332-303-4-04 is a valve actuator assembly designed for efficient fluid control. This assembly features a five-eighths inch body size and a three-way sequencing configuration, suitable for a diverse range of applications.

• Body Size: 5/8 in
• Configuration: 3-Way Sequencing
• Actuator Type: Pneumatic

Product Highlights

This product is designed for use with fluid systems, ensuring reliable operation and control. It is not compatible with steam applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Material Trim: Brass
• Flow Coefficient: 4.4 cv
• Close-Off Pressure: 35 PSI
• Control Signal: 2-Position (On/Off), Proportional
• Control Spring Range: 10 to 13 PSIG
• Loss of Power Position: Stem up, opens B to AB
• Leads and Connections: 1/8 in Air NPT
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
