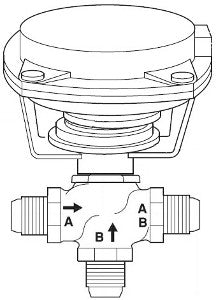

Schneider Electric VK-7332-303-4-03 globe valve assembly

Product Description

Schneider Electric VK-7332-303-4-03 is a globe valve assembly designed for various applications. It features a five-eighth inch body size, a three-way sequencing configuration, and a flare connection. The actuator is a pneumatic type with a control signal that supports both two-position and proportional modes.

• Body Size: 5/8 inch
• Flow Coefficient: 2.2 cv
• Close-Off Pressure: 35 PSI

Product Highlights

This valve assembly is suitable for HVAC systems and other industrial applications. It operates at a temperature range of negative seven to one hundred thirty-eight degrees Celsius. However, it should not be used with steam.

Product Information

Standard Information

• Brand: Schneider Electric
• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Material Trim: Brass
• Actuator Type: Pneumatic
• Control Spring Range: 10 to 13 PSIG
• Loss of Power Position: Opens B to AB
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• IP Degree of Protection: IP10
• Seating Seal Material: Metal to metal
