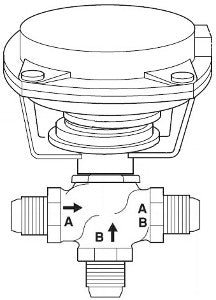

Schneider Electric VK-7323-302-4-09 Globe Valve Assembly

Product Description

Schneider Electric VK-7323-302-4-09 is a globe valve assembly designed for precise control of fluid flow. This product features a body size of one and one-quarter inches and operates as a three-way diverting valve, suitable for various applications in plumbing and HVAC systems.

• Body material: bronze
• Flow coefficient: 20 cv
• Close-off pressure: 15 PSI

Product Highlights

This valve assembly is designed for manual control, featuring a pneumatic actuator. It is not suitable for steam applications, making it ideal for a wide range of fluid handling tasks.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VK-7323-302-4-09

Technical Specifications

• Body Size: 1-1/4 inches
• Configuration: 3-Way Diverting
• Connection Type: NPT
• Flow Action: Stem up flow B to AB
• Actuator Type: Pneumatic
• Control Signal: 2-Position (On/Off), Proportional
• Control Spring Range: 5 to 10 PSIG
• Close-Off Pressure: 15 PSI
• Protection Rating: NEMA 1
• Ambient Temperature Range: -28.8 to 104.4 °C
• Material Trim: Brass
• Mechanical Movement: Linear
