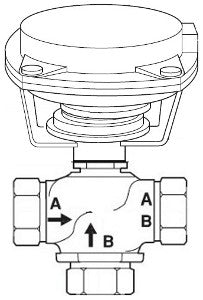

Schneider Electric VK-7313-303-4-06 Globe Valve Actuator Assembly

Product Description

The Schneider Electric VK-7313-303-4-06 is a globe valve actuator assembly designed for effective flow control in a variety of applications. This product features a three-way mixing configuration and is suitable for use with non-steam systems.

• Body Size: three-fourths inch
• Close-Off Pressure: 160 PSI
• Actuator Type: pneumatic

Product Highlights

The VK-7313-303-4-06 actuator provides reliable performance with various control signal options. It is ideal for use in HVAC and plumbing applications where precise control of fluid flow is important.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Material: bronze
• Flow Coefficient: 7.5 cv
• Stem Flow Action: down flow A to AB
• Mechanical Movement: linear
• Ambient Air Temperature for Operation: -28.8 to 104.4 °C
• Ambient Air Temperature for Storage: -40 to 104.4 °C
• Protection Rating: NEMA 1
• Seat Leakage: Class IV (Port A), Class V (Port B)
