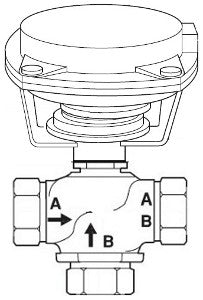

Schneider Electric VK-7313-303-4-04 Valve Assembly 3-Way Mixing NPT

Product Description

Schneider Electric VK-7313-303-4-04 is a valve assembly designed for fluid control. It features a 3-way mixing configuration, which allows for various flow patterns. This globe valve connects using NPT threads and supports a wide range of applications.

• Body Size: 1/2 in
• Flow Coefficient: 4.4 cv
• Close-Off Pressure: 250 PSI

Product Highlights

This valve assembly is ideal for applications that require reliable and precise fluid control. Its actuator type is pneumatic, featuring a control signal that operates in a two-position mode or can be proportional. The device is particularly suited for uses within the temperature range of -7 to 138 degrees Celsius.

Product Information

Standard Information

• Brand: Schneider Electric
• Origin: US

Technical Specifications

• Configuration: 3-Way Mixing
• Actuator Type: Pneumatic
• Material Trim: Brass
• Stem Flow Action: Stem down flow A to AB
• Control Spring Range: 10 to 13 PSIG
• Protection Rating: NEMA 1
• Leads and Connections: 1/8 in Air NPT
• Mechanical Movement: Linear
• Ambient Air Temperature For Operation: -28.8 to 104.4 degrees Celsius
• Seat Leakage: Class IV for Port A
