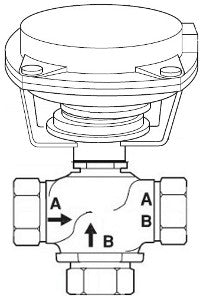

Schneider Electric VK-7313-303-4-02 Valve Actuator Assembly 1/2 in 3W Mix NPT

Product Description

The Schneider Electric VK-7313-303-4-02 is a valve actuator assembly designed specifically for use in various fluid control applications. This assembly is compact and features a body size of one-half inch, providing efficient performance in tight spaces.

• Body Size: 1/2 inches
• Configuration: 3-Way Mixing
• Actuator Type: Pneumatic

Product Highlights

This assembly is ideal for automated control systems in HVAC and industrial settings.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Size: 1/2 inches
• Configuration: 3-Way Mixing
• Type: Globe
• Connection: NPT
• Flow Coefficient: 2.2 cv
• Close-Off Pressure: 250 PSI
• Stroke Running Time: -
• Ambient Air Temperature For Operation: -28.8 to 104.4 °C
• Material: Brass
• Protection Rating: NEMA 1
• Actuator Model: MK-4621
• Seating Seal Material: PTFE
• Spring Return Type: Mechanical
