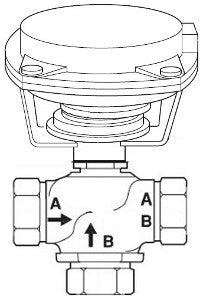

Schneider Electric VK-7313-302-4-09 Valve Assembly 1-1/4 in 3-Way Mixing

Product Description

The Schneider Electric VK-7313-302-4-09 is a valve assembly designed for effective flow control. This valve is suitable for various applications within HVAC systems. It features a unique 3-way mixing configuration which allows for efficient fluid management.

• Body Size: 1-1/4 inches
• Actuator Type: Pneumatic
• Material Trim: Brass

Product Highlights

This valve assembly is built for reliable performance and includes several essential features suited for trade professionals.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VK-7313-302-4-09

Technical Specifications

• Configuration: 3-Way Mixing
• Type: Globe
• Connection: NPT
• Flow Coefficient: 20 cv
• Close-Off Pressure: 15 PSI
• Control Signal: 2-Position On/Off, Proportional
• Control Spring Range: 5 to 10 PSIG
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• Operating Fluid Temperature: -7 to 138 °C
• Seat Leakage: Port A: Class IV, Port B: Class III
• Body Material: Bronze
• Ambient Air Temperature for Operation: -28.8 to 104.4 °C
• Valve Destination: Globe Valve
