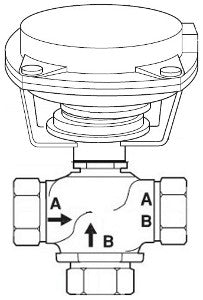

Schneider Electric VK-7313-302-4-08 globe valve actuator assembly

Product Description

The Schneider Electric VK-7313-302-4-08 is a valve actuator assembly designed for precise control in various systems. This globe valve features a one-inch body size and a three-way mixing configuration that allows for efficient fluid management. It uses NPT connections and has a flow coefficient of fourteen cv, making it suitable for many applications.

• Body size: 1 inch
• Actuator type: Pneumatic
• Control signal: Proportional

Product Highlights

This actuator assembly is ideal for HVAC systems and other fluid control applications, ensuring reliable performance and ease of installation.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Material: Bronze
• Close-Off Pressure: 30 PSI
• Control Spring Range: 5 to 10 PSIG
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -28.8 to 104.4 °C
• Ambient Air Temperature for Storage: -40 to 104.4 °C
