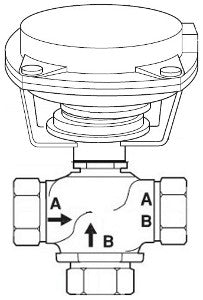

Schneider Electric VK-7313-302-4-04 Valve Assembly 3-Way Mixing

Product Description

Schneider Electric VK-7313-302-4-04 is a valve assembly designed for reliable performance in fluid control applications. This device features a half-inch body size and a 3-way mixing configuration. The globe type valve connects via NPT and operates with a flow coefficient of 4.4 cv. The unit can handle close-off pressures up to 100 PSI, providing robust operation in various environments.

• Body Size: 1/2 inch
• Actuator Type: Pneumatic
• Control Signal: 2-Position/Proportional

Product Highlights

This valve is suitable for use in numerous applications, facilitating efficient control of fluid flow.

Product Information

Standard Information

• Brand: Schneider Electric
• Country Origin: US

Technical Specifications

• Valve Type: Globe
• Connection: NPT
• Material Trim: Brass
• Flow Coefficient: 4.4 cv
• Close-Off Pressure: 100 PSI
• Control Spring Range: 5 to 10 PSIG
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature For Operation: -28.8 to 104.4 °C
• Ambient Air Temperature For Storage: -40 to 104.4 °C
• Diaphragm Effective Area: 11 in²
