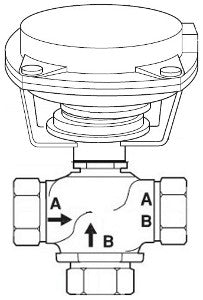

Schneider Electric VK-7313-302-4-02 Valve Actuator Assembly 1/2 In 3-Way Mixing

Product Description

Schneider Electric VK-7313-302-4-02 is a valve actuator assembly designed for reliable control in various systems. This product features a body size of one half inch and is suitable for three-way mixing applications. The globe valve type ensures efficient flow management in your systems.

• Body Size: 1/2 in
• Configuration: 3-Way Mixing
• Connection Type: NPT

Product Highlights

This actuator is pneumatic and operates with a control signal, offering both on/off and proportional functions.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VK-7313-302-4-02

Technical Specifications

• Stem Flow Action: Stem down flow A to AB
• Material Trim: Brass
• Flow Coefficient: 2.2 cv
• Close-Off Pressure: 100 PSI
• Actuator Type: Pneumatic
• Control Signal: 2-Position (On/Off), Proportional
• Control Spring Range: 5 to 10 PSIG
• Loss of Power Type: Spring Return
• Leads and Connections: 1/8 in Air NPT
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• Body Material: Bronze
• IP Degree of Protection: IP10
