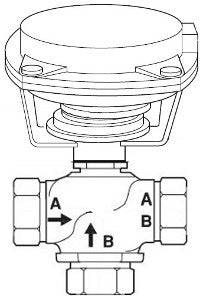

Schneider Electric VK-7313-301-4-08 Valve Actuator Assembly 1 in 3W Mix NPT

Product Description

The Schneider Electric VK-7313-301-4-08 is a valve actuator assembly designed for effective control of fluid flow. This unit features a size of one inch with a three-way mixing configuration ideal for various applications. It is a globe valve with an NPT connection.

• Body Size: 1 inch
• Flow Coefficient: 14 cv
• Close-Off Pressure: 5 PSI

Product Highlights

This actuator utilizes a pneumatic system for reliable operation. It supports a control signal with both on/off and proportional capabilities, catering to varied process control needs.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 3-Way Mixing
• Stem Flow Action: Stem down flow A to AB
• Material Trim: Brass
• Actuator Type: Pneumatic
• Control Spring Range: 3 to 6 PSIG
• Loss of Power Type: Spring Return
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
