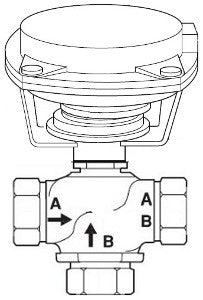

Schneider Electric VK-7313-301-4-04 Valve Actuator Assembly

Product Description

The Schneider Electric VK-7313-301-4-04 valve actuator assembly is designed for reliable control in various applications. This globe valve features a body size of one half inch with a three-way mixing configuration. It connects using NPT fittings, and utilizes pneumatic actuation.

• Body Size: 1/2 inch
• Configuration: 3-Way Mixing
• Type: Globe

Product Highlights

This valve actuator assembly is suitable for precise flow control in HVAC and fluid systems. Its linear mechanical movement and robust construction ensure effective operation under a variety of conditions.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 4.4 cv
• Close-Off Pressure: 30 PSI
• Control Signal: 2-Position (On/Off), Proportional
• Control Spring Range: 3-6 PSIG
• Loss of Power Position: Up/Retract A closed
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• Operating Fluid Temperature: -7-138 °C
