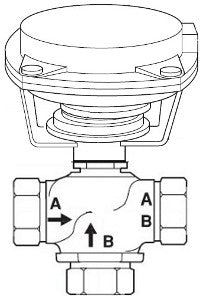

Schneider Electric VK-7313-301-4-02 Valve Actuator Assembly 3-Way Mix (1/2 in) Replacement MPN

Product Description

Schneider Electric VK-7313-301-4-02 is a valve actuator assembly designed for precise control in various applications. This globe valve features a half-inch body size and a three-way mixing configuration. It is made for NPT connections and utilizes a pneumatic actuator. The assembly is suitable for systems requiring a flow coefficient of 2.2 cv. It operates optimally at a close-off pressure of thirty PSI.

• Body size is half an inch
• Features a three-way mixing valve
• Pneumatic actuator with a control signal range

Product Highlights

This valve assembly is ideal for HVAC systems, providing precise flow control of water and other liquids. The actuator provides reliable operation with linear movement and a spring-return feature for safety. Designed for use in North America, this assembly is suitable for various industrial applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Valve Type: Globe
• Connection Size: 1/2 in NPT
• Flow Coefficient: 2.2 cv
• Close-Off Pressure: 30 PSI
• Actuator Type: Pneumatic
• Control Signal: 2-Position (On/Off), Proportional
• Control Spring Range: 3 to 6 PSIG
• Protection Rating: NEMA 1
• Operating Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -28.8 to 104.4 °C
• Mechanical Movement: Linear
• Body Material: Bronze
