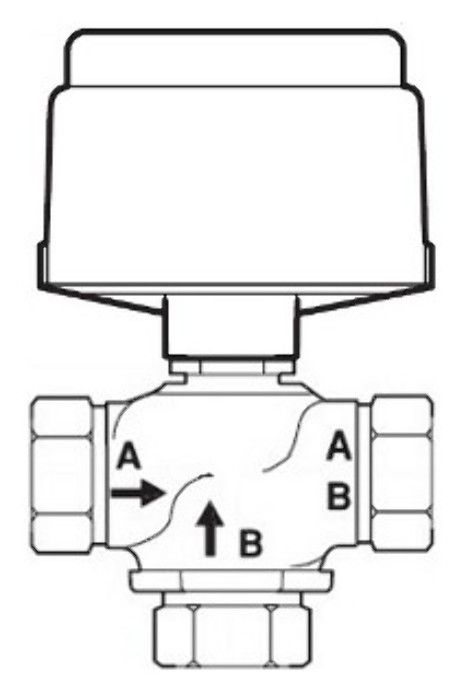

Schneider Electric VK-7313-201-4-04 Globe Valve Assembly 3 Way 1/2 in.

Product Description

The Schneider Electric VK-7313-201-4-04 is a globe valve assembly designed for precise control in pneumatic systems. This model features a three-way configuration, allowing for versatile application in HVAC systems. It is compatible with a range of fluids and conditions.

• Body Size: 1/2 inches
• Flow Coefficient: 4.4 Cv
• Material Trim: Brass

Product Highlights

This valve actuator is known for its rugged die-cast aluminum housing and a replaceable neoprene diaphragm, ensuring durability in demanding environments.

Product Information

Standard Information

• Valve Type: Globe
• Configuration: 3-Way Mixing

Technical Specifications

• Service: Glycol 25 To 60%, Steam, Water
• Operating Conditions: 20 F To 281 F (-7 C To 138 C)
• Close-Off Pressure: 150 PSI
• Control Signal: 2-Position (On/Off), Proportional
• Spring Range: 3 to 7 PSIG, 5 to 10 PSIG, 8 to 13 PSIG
• Diameter: 6 sq inches
• Stroke: 1/2 inches
• Air Connection: 1/8 inches FNPT
