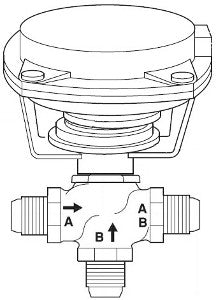

Schneider Electric VK-7312-303-4-04 Valve Actuator Assembly 5/8 in 3 Way Mixing

Product Description

The Schneider Electric VK-7312-303-4-04 is a valve actuator assembly designed for precise control in fluid flow applications. This valve features a body size of five-eighths inches and utilizes a three-way mixing configuration for efficient operation. It is primarily used in HVAC systems for regulating fluid flow with accuracy and reliability.

• Body Size: 5/8 inches
• Configuration: 3-Way Mixing
• Actuator Type: Pneumatic

Product Highlights

The VK-7312-303-4-04 operates with a close-off pressure of two hundred fifty PSI, making it suitable for various applications where pressure controls are critical. The actuator comes with a control signal feature that supports both two-position and proportional control capabilities.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 4.4 cv
• Control Spring Range: 10 to 13 PSIG
• Material Trim: Brass
• Protection Rating: NEMA 1
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Temperature for Operation: -28.8 to 104.4 °C
• Diaphragm Effective Area: 11 in²
• Mechanical Movement: Linear
