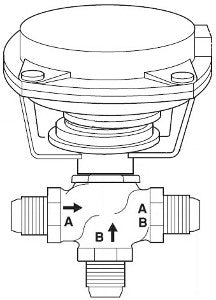

Schneider Electric VK-7312-303-4-02 Valve Assembly 5/8 in 3-Way Mixing Replacement MPN

Product Description

The Schneider Electric VK-7312-303-4-02 is a valve assembly designed for efficient fluid control. It features a body size of five-eighths of an inch and a three-way mixing configuration. This globe valve is ideal for applications requiring precise flow management.

• Body Size: 5/8 in
• Configuration: 3-Way Mixing
• Type: Globe Valve

Product Highlights

This valve assembly provides a reliable and effective solution for fluid control in various systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve-Actuator Assembly

Technical Specifications

• Flow Coefficient: 2.2 cv
• Close-Off Pressure: 250 PSI
• Actuator Type: Pneumatic
• Control Signal: 2-Position (On/Off), Proportional
• Control Spring Range: 10 to 13 PSIG
• Leads and Connections: 1/8 in Air NPT
• Protection Rating: NEMA 1
• Material: Brass
• Operating Fluid Temperature: -7-138 °C
• Seat Leakage: Port A: Class III (0.1 %)
• Seat Material: Bronze
• Mechanical Movement: Linear
