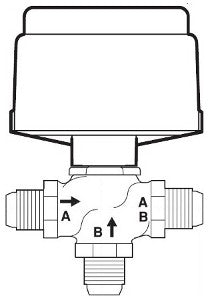

Schneider Electric VK-7312-203-4-02 valve actuator assembly

Product Description

The Schneider Electric VK-7312-203-4-02 is a valve actuator assembly designed for effective fluid control in HVAC and plumbing systems. This assembly features a globe valve with a 3-way mixing configuration.

• Body Size: 5/8 inch
• Flow Coefficient: 2.2 cv
• Actuator Type: Pneumatic

Product Highlights

This assembly is built for functionality and simplicity. It operates with a control signal for on/off and proportional control, making it suitable for various applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Action: Stem down flow A to AB
• Close-Off Pressure: 5 PSI
• Control Spring Range: 3 to 7 PSIG, 5 to 10 PSIG, 8 to 13 PSIG
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -28.8 to 104.4 °C
• Seat Leakage: Port A Class III (0.1%)
