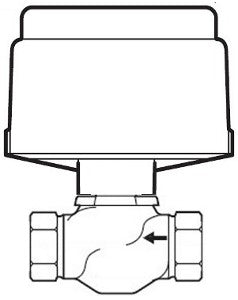

Schneider Electric VK-7263-203-4-07 Valve Actuator Assembly 1 in Globe Valve

Product Description

The Schneider Electric VK-7263-203-4-07 is a valve actuator assembly designed for precise fluid control. This unit features a one-inch body size with a globe valve type and a two-way configuration, ideal for various applications in HVAC and plumbing. The actuator operates pneumatically and offers proportional control.

• Body Size: 1 inch
• Flow Coefficient: 10 cv
• Close-Off Pressure: 30 PSI

Product Highlights

This actuator assembly allows for smooth operation with manual override capabilities. It is suited for controlling liquid or gas flows in various settings.

Product Information

Standard Information

• Country of Origin: US
• Brand: Schneider Electric

Technical Specifications

• Valve Type: Globe
• Flow Pattern: Linear
• Material Trim: Brass
• Stem Action: Stem up opens
• Actuator Type: Pneumatic
• Control Spring Range: 3 to 7 PSIG, 5 to 10 PSIG, 8 to 13 PSIG
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• Ambient Air Temp for Operation: -28.8 to 104.4 °C
• Relative Humidity: 5-95 % non-condensing
• Seating Seal Material: PTFE
