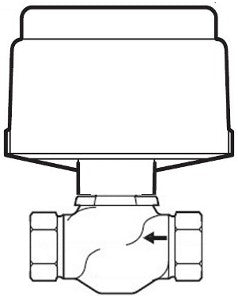

Schneider Electric VK-7263-203-4-01 Valve Actuator Assembly 2-Way NPT

Product Description

Schneider Electric VK-7263-203-4-01 is a valve actuator assembly designed for efficient flow control in various applications. This unit features a 1/2 inch body size and operates as a 2-way globe valve. It connects via NPT for secure fitting and has a straightway body pattern. The actuator type is pneumatic, allowing for precise adjustments.

• Body Size: 1/2 in
• Configuration: 2-Way
• Material Trim: Brass

Product Highlights

This valve assembly is ideal for use in systems requiring reliable pressure control and response. It operates with a flow coefficient of 0.4 cv and handles close-off pressures reaching 130 PSI. Additionally, it supports manual override with an Allen wrench for emergency operation.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Close-Off Pressure: 130 PSI
• Control Signal: 2-Position (On/Off), Proportional
• Ambient Air Temperature for Operation: -28.8 to 104.4 °C
• Seating Seal Material: PTFE
• Flow Coefficient: 0.4 cv
• Protection Rating: NEMA 1
• Valve Body Material: Bronze
• Diaphragm Effective Area: 6 in²
