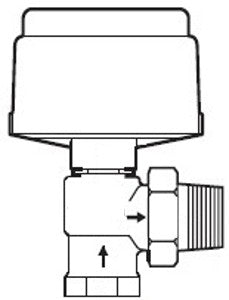

Schneider Electric VK-7251-201-3-04 Valve Actuator Assembly 2-Way Globe

Product Description

The Schneider Electric VK-7251-201-3-04 is a globe valve actuator assembly designed for efficient fluid control. This assembly features a 2-way configuration with a half-inch body size. It is suitable for various industrial applications requiring reliable valve operation.

• Body size: 1/2 inch
• Configuration: 2-way
• Material trim: Stainless Steel

Product Highlights

This valve actuator assembly includes advanced features such as a pneumatic actuator and a control signal for on/off and proportional operation. It provides a close-off pressure of one hundred thirty PSI.

Product Information

Standard Information

• Brand: Schneider Electric
• Origin: US

Technical Specifications

• Actuator type: Pneumatic
• Flow coefficient: 4.4 cv
• Control spring range: 3 to 7 PSIG, 5 to 10 PSIG, 8 to 13 PSIG
• Loss of power position: Normally open
• Material: Die cast aluminum housing
• Electrical insulation class: NEMA 1
• Operating fluid temperature: -7 to 138 °C
• Relative humidity: 5 to 95% non-condensing
