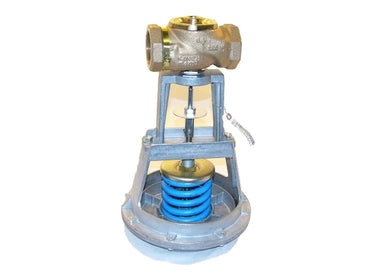

Schneider Electric VK-7223-613-4-09 Valve Actuator Assembly 1-1/4 in 2 Way Globe

Product Description

The Schneider Electric VK-7223-613-4-09 is a valve actuator assembly that is designed for precise fluid control in various applications. This assembly features a body size of one and one-quarter inches and operates as a two-way globe valve. It connects via NPT and offers a robust performance with a flow coefficient of twenty cv.

• Body Size: 1-1/4 in
• Configuration: 2-Way
• Type: Globe

Product Highlights

This valve actuator assembly is suitable for pneumatic applications and provides reliable control for various industrial uses.

Product Information

Standard Information

• Brand: Schneider Electric
• Origin: US

Technical Specifications

• Material Trim: Brass
• Close-Off Pressure: 170 PSI
• Actuator Type: Pneumatic
• Control Signal: Proportional
• Control Spring Range: 8 to 13 PSIG
• Protection Rating: NEMA 1
• Operating Fluid Temperature: -7 to 138 °C
• Seating Seal Material: EPDM (ethylene propylene diene monomer)
