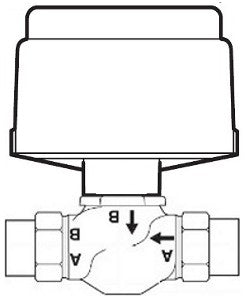

Schneider Electric VK-7214-201-4-02 Valve Actuator Assembly 1/2 in 2-Way Globe

Product Description

Schneider Electric VK-7214-201-4-02 is a reliable valve actuator assembly designed for efficient operation in various applications. This valve features a 1/2 inch body size and is configured as a 2-way globe type with a straightway body pattern.

• Body size: 1/2 inch
• Flow coefficient: 1.3 cv
• Close-off pressure: 130 PSI

Product Highlights

This valve actuator assembly is intended for use in North American systems and is suitable for various fluid control applications. It features a sturdy construction with a brass trim and a pneumatically controlled actuator.

Product Information

Standard Information

• Brand: Schneider Electric
• Country Origin: US

Technical Specifications

• Valve type: Globe
• Connection type: Sweat
• Stem flow action: Stem up A open
• Material trim: Brass
• Actuator type: Pneumatic
• Control signal: 2-Position (On/Off), Proportional
• Loss of power position: Normally open
• Control spring range: 3 to 7 PSIG, 5 to 10 PSIG, 8 to 13 PSIG
