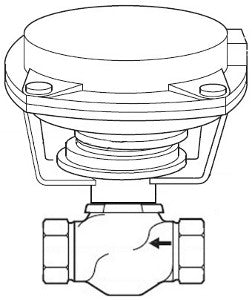

Schneider Electric VK-7213-303-4-09 Globe Valve 1-1/4 in

Product Description

Schneider Electric VK-7213-303-4-09 is a globe valve assembly designed for efficient flow control. This valve is suitable for many industrial applications. It features a body size of one and one-quarter inches in a two-way configuration. The connection type is National Pipe Thread (NPT), ensuring a strong and secure fit.

• Body Size: 1-1/4 in
• Configuration: 2-way
• Flow Coefficient: 20 cv

Product Highlights

The valve utilizes a pneumatic actuator, allowing for both on/off and proportional control. It includes a spring return feature, which maintains its position under loss of power. This assembly has a close-off pressure of forty PSI, making it ideal for high-pressure applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Pattern: Straightway
• Actuator Type: Pneumatic
• Control Signal: 2-Position (On/Off), Proportional
• Control Spring Range: 10 to 13 PSIG
• Loss of Power Position: Normally open
• Operating Fluid Temperature: -7 to 138 °C
• Protection Rating: IP10
• Material Trim: Brass
• Seating Seal Material: EPDM
