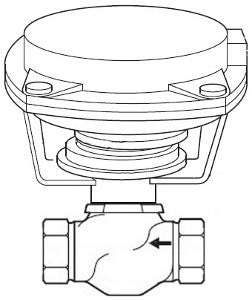

Schneider Electric VK-7213-303-4-07 Globe Valve Assembly

Product Description

The Schneider Electric VK-7213-303-4-07 is a globe valve assembly designed for reliable flow control in various applications. This assembly features a body size of one inch and operates with a two-way configuration. It is suited for manual override and is ideal for HVAC systems, plumbing applications, and industrial processes requiring precision control.

• Body Material: Bronze with brass trim
• Actuator Type: Pneumatic with a linear movement
• Flow Coefficient: Ten cv

Product Highlights

This valve supports a close-off pressure of sixty-five PSI and offers effective flow management. Its durable construction ensures long-lasting performance.

Product Information

Standard Information

• Brand: Schneider Electric
• Type: Valve Actuator Assembly

Technical Specifications

• Body Pattern: Straightway
• Connection: NPT
• Control Signal: 2-Position (On/Off), Proportional
• Control Spring Range: 10 to 13 PSIG
• Mechanical Movement: Linear
• Loss of Power Type: Spring Return
• Protection Rating: NEMA 1
• Operating Temperature: -7 to 138 °C
