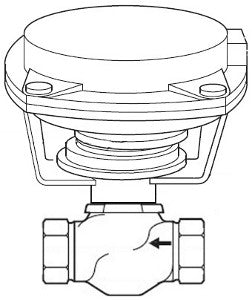

Schneider Electric VK-7213-303-4-03 Globe Valve Assembly

Product Description

The Schneider Electric VK-7213-303-4-03 is a reliable globe valve assembly designed for various fluid control applications. The body size measures half an inch with a two-way configuration. This valve utilizes a straightway body pattern and connects through NPT threads.

• Body Size: 1/2 in
• Actuator Type: Pneumatic
• Control Type: Manual override

Product Highlights

This globe valve assembly is suitable for both standard and dynamic applications. It operates effectively within a temperature range of negative seven to one hundred thirty-eight degrees Celsius. The valve is designed with a flow coefficient of two point two and has a close-off pressure of ten PSI.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Material Trim: Brass
• Seating Seal Material: PTFE (polytetrafluoroethylene)
• Loss of Power Position: Normally open
• Flow Coefficient: 2.2 cv
• Mechanism Type: Linear
• IP Degree of Protection: IP10
• Ambient Air Temperature for Operation: -28.8 to 104.4 °C
• Seating Leakage: Port A: Class IV (0.01 %)
