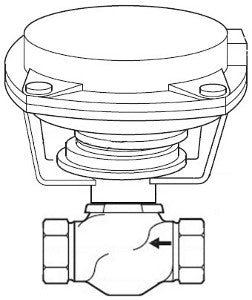

Schneider Electric VK-7213-303-4-01 Globe Valve Assembly

Product Description

The Schneider Electric VK-7213-303-4-01 is a globe valve assembly designed for effective flow control. This valve operates efficiently with a body size of one half inch and features a two-way configuration. It employs a straightway body pattern and utilizes a brass trim material, making it suitable for various applications.

• Body Size: 1/2 inch
• Flow Coefficient: 0.4 cv
• Actuator Type: Pneumatic

Product Highlights

This valve assembly is ideal for HVAC and plumbing applications where precise control of fluid flow is necessary. It includes a pneumatic actuator with a control signal for on/off or proportional operation.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Pattern: Straightway
• Connection: NPT
• Close-Off Pressure: 10 PSI
• Control Spring Range: 10 to 13 PSIG
• Loss of Power Position: Normally open
• Seat Material: Bronze
• Seating Seal Material: PTFE
• Ambient Air Temperature for Operation: -28.8 to 104.4 °C
• IP Degree of Protection: IP10
• Mechanical Movement: Linear
