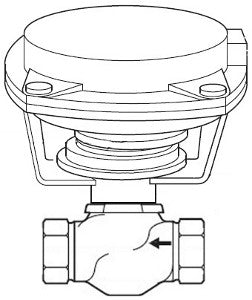

Schneider Electric VK-7213-302-4-08 Globe Valve Assembly

Product Description

Schneider Electric VK-7213-302-4-08 is a globe valve assembly designed for reliable fluid control in various applications. This valve features a one inch body size and a two-way configuration. The valve's construction is straightway, making it suitable for pipelines where flow direction is critical.

• Body Size: 1 inch
• Actuator Type: Pneumatic
• Flow Coefficient: 14 cv

Product Highlights

This valve assembly is crafted with a brass trim and operates efficiently under a close-off pressure of thirty PSI. It incorporates a pneumatic actuator and supports a control signal of two-position and proportional adjustments, leading to enhanced operational precision.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Material Trim: Brass
• Connection Type: NPT
• Operating Fluid Temperature: -7 to 138 °C
• Saturated Steam Temperature: -7 to 138 °C
• Close-Off Pressure: 30 PSI
• Control Spring Range: 5 to 10 PSIG
• Ambient Air Temperature for Operation: -28.8 to 104.4 °C
• Ambient Air Temperature for Storage: -40 to 104.4 °C
