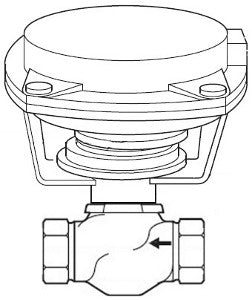

Schneider Electric VK-7213-302-4-06 Valve Actuator Assembly Power 3/4 Inch NPT

Product Description

The Schneider Electric VK-7213-302-4-06 valve actuator assembly is a component designed for managing fluid flow. It features a three-quarter inch body size and operates with a two-way globe valve configuration. The valve utilizes a straightway body pattern with NPT connections ensuring secure fit and function.

• Body Size: 3/4 inch
• Flow Coefficient: 7.5 cv
• Close-Off Pressure: 80 PSI

Product Highlights

This actuator provides precise flow control through its pneumatic operation and is suitable for various applications in HVAC and plumbing systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Country Origin: US

Technical Specifications

• Actuator Type: Pneumatic
• Control Signal: 2-Position (On/Off), Proportional
• Control Spring Range: 5 to 10 PSIG
• Seat Material: Bronze
• Seating Seal Material: PTFE
• Loss of Power Position: Normally open
• Protection Rating: NEMA 1
• Ambient Air Temperature For Operation: -28.8 to 104.4 °C
• Valve Rotation: Manual override with 5/32 allen wrench
