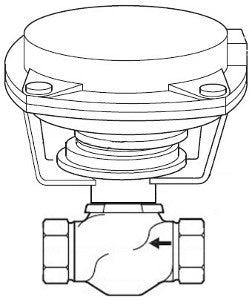

Schneider Electric VK-7213-302-4-01 valve-actuator assembly 1/2 in

Product Description

Schneider Electric VK-7213-302-4-01 is a valve actuator assembly designed for reliable fluid control. This assembly features a half-inch globe valve with a two-way configuration. It operates with a pneumatic actuator and supports a flow coefficient of 0.4 cv at a maximum close-off pressure of 120 PSI.

• Body Size: 1/2 in
• Type: Globe
• Material: Brass trim

Product Highlights

This valve assembly is suitable for various applications in HVAC and plumbing systems. Its linear mechanical movement allows for precise control. The actuator supports both on/off and proportional signal control.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Flow Coefficient: 0.4 cv
• Close-Off Pressure: 120 PSI
• Control Signal: 2-Position (On/Off), Proportional
• Spring Range: 5 to 10 PSIG
• Ambient Temperature for Operation: -28.8 to 104.4 °C
• Body Material: Bronze
• Seat Material: Bronze
• Seating Seal Material: PTFE
