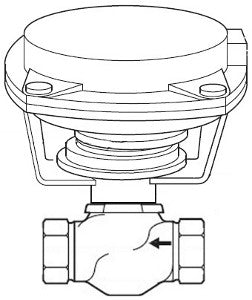

Schneider Electric VK-7213-301-4-07 Globe Valve Actuator Assembly

Product Description

The Schneider Electric VK-7213-301-4-07 is a globe valve actuator assembly. It has a body size of one inch and supports a two-way configuration. This valve is designed for reliable operation in various fluid control applications.

• Body material is bronze.
• Designed for pneumatic control.
• Close-off pressure is five psi.

Product Highlights

This product features a linear mechanical movement and a stem open action for effective flow control. It operates under ambient temperatures ranging from negative twenty-eight point eight to one hundred four point four degrees Celsius.

Product Information

Standard Information

• Country of Origin: US
• Brand: Schneider Electric

Technical Specifications

• Body Size: 1 inch
• Flow Coefficient: 10 cv
• Actuator Type: Pneumatic
• Close-Off Pressure: 5 PSI
• Control Signal: 2-Position (On/Off), Proportional
• Control Spring Range: 3 to 6 PSIG
• Protection Rating: NEMA 1
• Operating Fluid Temperature: -7 to 138 °C
• Seating Seal Material: EPDM
• Mechanical Movement: Linear
