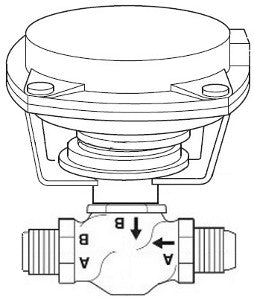

Schneider Electric VK-7212-301-4-04 Valve Actuator Assembly

Product Description

The Schneider Electric VK-7212-301-4-04 is a valve actuator assembly designed for efficient operation in various piping applications. This valve features a body size of five-eighths inches and utilizes a globe type with a straightway body pattern. It is engineered for reliable performance under pressures up to two hundred fifty PSI.

• Body Size: 5/8 inches
• Configuration: 2-Way
• Actuator Type: Pneumatic

Product Highlights

The VK-7212-301-4-04 is intended for use in North American applications and offers precise control with a pneumatic actuator. The actuator utilizes a 2-position or proportional control signal, ensuring flexibility for various system needs.

Product Information

Standard Information

• Body Material: Bronze
• Manufactured By: Schneider Electric

Technical Specifications

• Flow Coefficient: 4.4 cv
• Close-Off Pressure: 250 PSI
• Operating Fluid Temperature: -7 to 138 °C
• Stroke Length: 11 in²
• Spring Return Type: Normally Open
• Control Spring Range: 3 to 6 PSIG
• NEMA Protection Rating: NEMA 1
• Ambient Air Temperature for Operation: -28.8 to 104.4 °C
