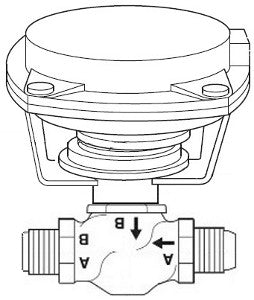

Schneider Electric VK-7212-301-4-01 Globe Valve Assembly

Product Description

Schneider Electric VK-7212-301-4-01 is a valve actuator assembly designed for various applications. This assembly features a five-eighth inch body size and operates as a two-way globe valve. It is built with a straightway body pattern and provides a flare connection. The actuator is pneumatic and has a control signal that allows for two-position or proportional control.

• Body Size: five-eighths inches
• Flow Coefficient: 0.4 cv
• Close-Off Pressure: 250 PSI

Product Highlights

The VK-7212-301-4-01 globe valve is suitable for controlling fluid flow in various systems. It is recognized for its durability and consistent performance under pressure.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Valve Type: Globe
• Control Spring Range: three to six PSIG
• Loss of Power Position: Normally open
• Material Trim: Brass
• Ambient Air Temperature for Operation: negative twenty-eight point eight to one hundred four point four degrees Celsius
• Body Material: Bronze
• Seat Material: Bronze
• Seating Seal Material: EPDM
