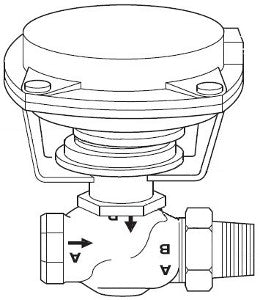

Schneider Electric VK-7211-302-4-09 valve actuator assembly

Product Description

The Schneider Electric VK-7211-302-4-09 is a valve actuator assembly designed for reliable and efficient operation in plumbing and HVAC systems. This assembly includes a pneumatic actuator that controls a globe valve, facilitating smooth flow management. It features a body size of one and one-quarter inches and is configured as a two-way globe valve with a straightway body pattern.

• Body Size: 1-1/4 inches
• Configuration: 2-Way
• Actuator Type: Pneumatic

Product Highlights

This product is engineered for precision control and robust performance, suited for various applications.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: VK-7211-302-4-09

Technical Specifications

• Body Material: Bronze
• Flow Coefficient: 20 cv
• Close-Off Pressure: 20 PSI
• Control Signal: 2-Position (On/Off), Proportional
• Control Spring Range: 5 to 10 PSIG
• Seating Seal Material: EPDM
• Ambient Air Temperature For Operation: -28.8 to 104.4 °C
• Ambient Air Temperature For Storage: -40 to 104.4 °C
