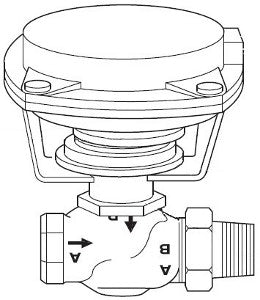

Schneider Electric VK-7211-302-4-08 Valve Actuator Assembly 1 in

Product Description

Schneider Electric VK-7211-302-4-08 is a valve actuator assembly designed for effective fluid control in various applications. This product features a one-inch body size and operates as a two-way globe valve. It is equipped with a pneumatic actuator for precise control and durability. The assembly is suitable for use in North America.

• Body Size: 1 inch
• Flow Coefficient: 14 cv
• Close-Off Pressure: 35 PSI

Product Highlights

This valve actuator is designed for reliable performance in fluid management systems. Its sturdy construction and precise control capabilities make it suitable for a range of industrial and commercial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Type: Globe
• Configuration: 2-Way
• Connection: NPT
• Material Trim: Brass
• Control Signal: 2-Position (On/Off), Proportional
• Electrical Insulation Class: NEMA 1
• Operating Fluid Temperature: -7 to 138 °C
• Seat Material: Bronze
• Seating Seal Material: EPDM
