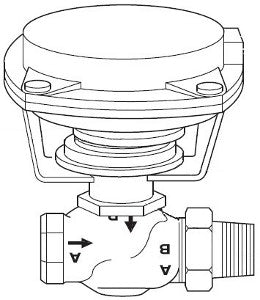

Schneider Electric VK-7211-302-4-07 Valve Assembly 1 In 2-Way Globe NPT

Product Description

The Schneider Electric VK-7211-302-4-07 is a valve assembly designed for efficient fluid control. It features a 1 inch body size and is constructed with a straightway globe configuration. This valve operates using pneumatic actuation, making it suitable for various applications.

• Body Size: 1 inch
• Control Type: 2-Position, Proportional
• Close-Off Pressure: 35 PSI

Product Highlights

This valve offers a manual override option and is built to handle various conditions with an ambient temperature range from negative twenty-eight point eight to one hundred four point four degrees Celsius.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Valve Type: Globe
• Connection Type: NPT
• Flow Coefficient: 10 cv
• Material Trim: Brass
• Actuator Type: Pneumatic
• Seating Seal Material: EPDM
• Protection Rating: NEMA 1
• Ambien Temperature for Operation: -28.8 to 104.4 °C
