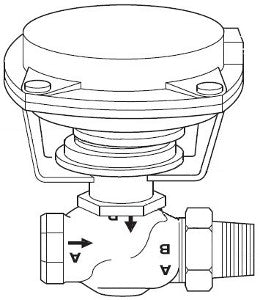

Schneider Electric VK-7211-302-4-01 Valve Actuator Assembly 1/2 in

Product Description

Schneider Electric VK-7211-302-4-01 is a valve actuator assembly designed for effective control in various systems. This 2-way globe valve offers reliable performance and is suitable for a range of applications. It features a body size of half an inch and is made from durable materials for longevity.

• Body Size: 1/2 in
• Configuration: 2-Way
• Connection Type: NPT

Product Highlights

This valve operates with pneumatic control and integrates easily into existing setups, ensuring efficient flow management. Ideal for commercial and industrial applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Origin: US

Technical Specifications

• Body Pattern: Straightway
• Material Trim: Brass
• Flow Coefficient: 0.4 cv
• Close-Off Pressure: 120 PSI
• Actuator Type: Pneumatic
• Control Signal: 2-Position (On/Off), Proportional
• Control Spring Range: 5 to 10 PSIG
• Loss of Power Type: Spring Return
• Loss of Power Position: Normally open
• Leads and Connections: 1/8 in Air NPT
• Mechanical Movement: Linear
• Protection Rating: NEMA 1
• Actuator: MK-4611
• Valve Body Model: VB-7211-0-4-01
• Seating Seal Material: PTFE
• Operating Fluid Temperature: -7 to 138 °C
• Weight: 2.359 kg
