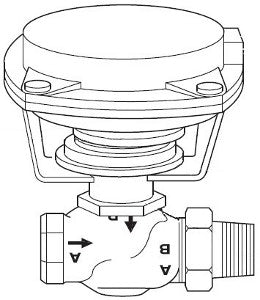

Schneider Electric VK-7211-301-4-09 Globe Valve Actuator Assembly

Product Description

The Schneider Electric VK-7211-301-4-09 is a globe valve actuator assembly designed for reliable performance in various applications. It operates with a body size of one and one-fourth inches and features a two-way configuration. This valve assembly is suitable for pneumatic actuation, providing precise control.

• Body Material: Brass
• Flow Coefficient: 20 cv
• Close-Off Pressure: 50 PSI

Product Highlights

The VK-7211-301-4-09 is engineered for linear movement and features a normally open position, ideal for pneumatic control systems.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve Actuator Assembly

Technical Specifications

• Body Size: 1-1/4 in
• Configuration: 2-Way
• Material Trim: Brass
• Actuator Type: Pneumatic
• Control Signal: 2-Position (On/Off), Proportional
• Flow Coefficient: 20 cv
• Close-Off Pressure: 50 PSI
• Actuator: MK-4601 with an auxiliary switch
• Protection Rating: NEMA 1
• Ambient Temperature Range: -28.8 to 104.4 °C
• Weight: 3.946 kg
