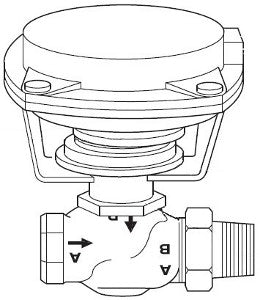

Schneider Electric VK-7211-301-4-08 Globe Valve Assembly 1 in

Product Description

Schneider Electric VK-7211-301-4-08 is a globe valve assembly designed for efficient control of fluid flow. This assembly features a one inch body size and is configured as a two-way valve. It is suitable for various applications where precise flow management is necessary.

• Body Size: 1 in
• Configuration: 2-Way
• Actuator Type: Pneumatic

Product Highlights

The globe valve assembly is equipped with a straightway connection and operates under a close-off pressure of 90 PSI. It includes a linear actuator for smooth operation.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Pattern: Straightway
• Stem Flow Action: Stem up A open
• Material Trim: Brass
• Flow Coefficient: 14 cv
• Control Signal: 2-Position (On/Off), Proportional
• Control Spring Range: 3 to 6 PSIG
• Mechanism Movement: Linear
• Protection Rating: NEMA 1
• IP Degree of Protection: IP10
• Operating Fluid Temperature: -7-138 °C
• Ambient Air Temperature for Operation: -28.8-104.4 °C
