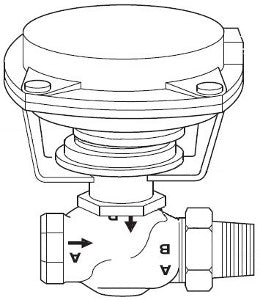

Schneider Electric VK-7211-301-4-02 Valve Actuator Assembly 1/2 in Globe Replacement MPN

Product Description

The Schneider Electric VK-7211-301-4-02 is a valve actuator assembly designed for effective fluid control. This assembly features a half inch body size and operates as a 2-way globe valve. With a straightway configuration and NPT connection, it is suitable for various applications where precise control is required.

• Body size: 1/2 inch
• Flow coefficient: 1.3 cv
• Operating fluid temperature: minus seven to one hundred thirty-eight degrees Celsius

Product Highlights

This valve actuator is ideal for use in industrial applications. It provides reliable performance in temperature ranges from minus twenty-eight point eight to one hundred four point four degrees Celsius. The pneumatic actuator features a two-position signal for effective control.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Type: Valve actuator assembly
• Configuration: 2-Way
• Close-off Pressure: 250 PSI
• Control Signal: 2-Position (On/Off), Proportional
• Loss of Power Position: Normally Open
• Material Trim: Brass
• Protection Rating: NEMA 1
• Seat Material: Bronze
• Seating Seal Material: PTFE (polytetrafluoroethylene)
