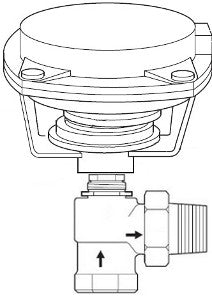

Schneider Electric VK-7211-301-3-08 Valve Actuator Assembly 1 in

Product Description

Schneider Electric VK-7211-301-3-08 is a valve actuator assembly designed for efficient flow control. This valve features a one-inch body size and a two-way globe configuration, suited for various piping systems. It utilizes an angle body pattern and is connected via NPT.

• Flow coefficient of 16 cv
• Close-off pressure at 90 PSI
• Pneumatic actuator with spring return

Product Highlights

The VK-7211-301-3-08 is suitable for North American applications, operates effectively in temperatures from negative seven to one hundred thirty-eight degrees Celsius, and supports a manual override feature for easy control.

Product Information

Standard Information

• Type: Valve-actuator assembly
• Brand: Schneider Electric

Technical Specifications

• Actuator Type: Pneumatic
• Control Signal: 2-Position (On/Off), Proportional
• Protection Rating: NEMA 1
• Ambient Air Temperature: -28.8 to 104.4 °C
• Materials: Body - Bronze, Trim - Brass, Seal - EPDM
• Connections: 1/8 inch Air NPT
• Stroke Length: Linear
• Seating Class: Class IV
