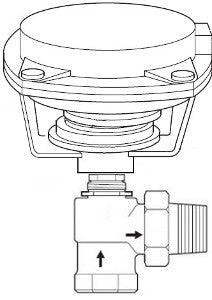

Schneider Electric VK-7211-301-3-07 Globe Valve Actuator Assembly

Product Description

The Schneider Electric VK-7211-301-3-07 is a globe valve actuator assembly designed for various industrial applications. It features a one inch body size and operates using a pneumatic actuator, ideal for controlling fluid flow. The valve assembly includes both manual and proportional control options, making it versatile for multiple settings.

• Body Size: 1 inch
• Configuration: 2-Way
• Type: Globe

Product Highlights

This globe valve actuator assembly provides reliable operation and is compatible with different piping configurations.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Pattern: Angle
• Connection: NPT
• Flow Coefficient: 14 cv
• Close-Off Pressure: 90 PSI
• Actuator Type: Pneumatic
• Control Signal: 2-Position/Proportional
• Control Spring Range: 3 to 6 PSIG
• Loss of Power Type: Spring Return
• Ambient Air Temperature for Operation: -28.8 to 104.4 °C
• Seat Leakage: Class IV (0.01 %)
