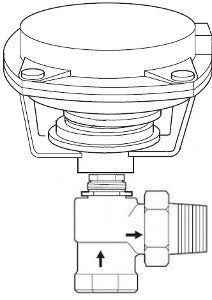

Schneider Electric VK-7211-301-3-06 Globe Valve Assembly

Product Description

The Schneider Electric VK-7211-301-3-06 is a globe valve assembly designed for efficient fluid control. This assembly features a three-quarter-inch size and operates as a two-way valve with an angle configuration. The NPT connection type allows for easy integration into existing systems.

• Body Size: 3/4 in
• Configuration: 2-Way
• Material Trim: Brass

Product Highlights

This valve is equipped with an actuator that provides reliable performance for various applications. It has a close-off pressure rating of one hundred eighty PSI and a flow coefficient of eight point five cv, making it suitable for multiple settings.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Country of Origin: US

Technical Specifications

• Control Type: Manual override with 5/32 allen wrench
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature for Operation: -28.8 to 104.4 °C
• Flow Coefficient: 8.5 cv
• Close-Off Pressure: 180 PSI
• Actuator Type: Pneumatic
• Control Signal: 2-Position (On/Off), Proportional
• Loss of Power Position: Normally open
• IP Degree of Protection: IP10
• Stem Flow Action: Stem up A open
