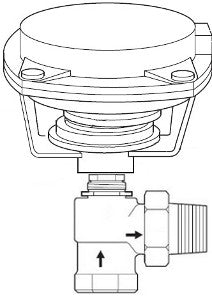

Schneider Electric VK-7211-301-3-05 Globe Valve Assembly 3/4 in

Product Description

Schneider Electric VK-7211-301-3-05 is a globe valve assembly designed for efficient fluid control. This assembly features a three-quarter inch size and is configured as a two-way valve with an angle body pattern suitable for various applications.

• Body Material: Bronze
• Close-Off Pressure: 180 PSI
• Actuator Type: Pneumatic

Product Highlights

This valve is suitable for use in HVAC systems and industrial processes. It provides reliable operation with a 2-position control signal and a proportional flow option.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Type: Valve-Actuator Assembly

Technical Specifications

• Body Size: 3/4 in
• Flow Coefficient: 5.5 cv
• Stem Flow Action: Stem up A open
• Control Signal: 2-Position (On/Off), Proportional
• Control Spring Range: 3 to 6 PSIG
• Loss of Power Position: Normally open
• Mechanical Movement: Linear
• Ambient Air Temperature for Operation: -28.8 to 104.4 °C
