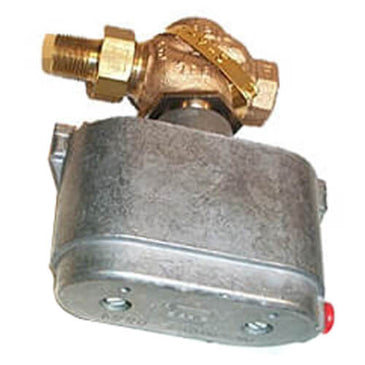

Schneider Electric VK-7211-202-4-07 Globe Valve Assembly

Product Description

The Schneider Electric VK-7211-202-4-07 is a globe valve actuator assembly designed for efficient flow control. This valve features a one-inch body size and operates as a two-way valve. Its straightway configuration and NPT connection enhance its versatility in various applications.

• Body Size: 1 inch
• Flow Coefficient: 10 cv
• Actuator Type: Pneumatic

Product Highlights

This globe valve is suitable for managing fluid flow with precision. It provides a close-off pressure of 25 PSI and a control signal for both on/off and proportional control.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Configuration: 2-Way
• Stem Flow Action: Stem up A open
• Material Trim: Brass
• Close-Off Pressure: 25 PSI
• Control Spring Range: 3 to 7 PSIG, 5 to 10 PSIG, 8 to 13 PSIG
• Loss of Power Type: Spring Return
• Protection Rating: NEMA 1
• Operating Fluid Temperature: -7 to 138 °C
