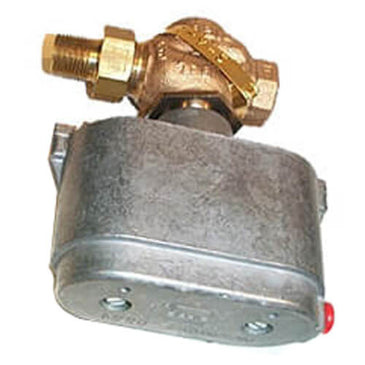

Schneider Electric VK-7211-202-3-04 Globe Valve Assembly 1/2 in NPT

Product Description

Schneider Electric's VK-7211-202-3-04 is a globe valve assembly designed for reliable fluid control in various applications. This two-way valve features a half-inch body size and utilizes an angle configuration for effective flow management.

• Body Size: 1/2 in
• Configuration: 2-Way
• Material Trim: Brass

Product Highlights

This globe valve is built for durability and precision. It is suitable for systems operating at a maximum close-off pressure of 90 PSI and has a flow coefficient of 5 cv, making it versatile for different applications.

Product Information

Standard Information

• Brand: Schneider Electric
• Country of Origin: US

Technical Specifications

• Body Type: Globe
• Flow Action: Stem up A open
• Actuator Type: Pneumatic
• Control Signal: 2-Position (On/Off), Proportional
• Protection Rating: NEMA 1
• Operating Fluid Temperature: -7 to 138 °C
• Seat Leakage: Class IV (0.01 %)
• Linear Mechanical Movement
