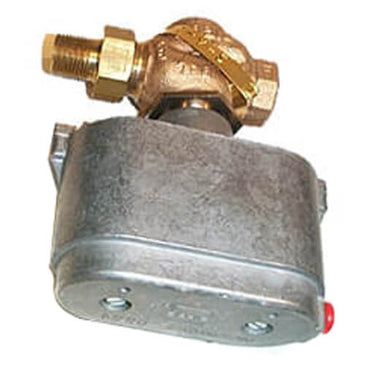

Schneider Electric VK-7211-201-3-01 Globe Valve Actuator Assembly 1/2 in

Product Description

Schneider Electric VK-7211-201-3-01 is a globe valve actuator assembly designed for effective fluid control. This model features a one-half inch body size and a two-way configuration. The valve utilizes an angle body pattern with an NPT connection, making it suitable for various applications. The actuator operates pneumatically and provides a control signal that accommodates two positions: on/off and proportional.

• Body Size: 1/2 inches
• Flow Coefficient: 0.4 cv
• Close-Off Pressure: 130 PSI

Product Highlights

This assembly is appropriate for HVAC and plumbing systems where precise control of airflow or fluid is necessary. It features brass material trim that ensures durability and reliability.

Product Information

Standard Information

• Country of Origin: US
• Manufacturer: Schneider Electric

Technical Specifications

• Stem Flow Action: Stem up A open
• Protection Rating: NEMA 1
• Operating Fluid Temperature: -7 to 138 °C
• Ambient Air Temperature For Operation: -28.8 to 104.4 °C
• Mechanical Movement: Linear
• Protection Rating: IP10
• Material: Die cast aluminum housing
• Valve Body: VB-7211-0-3-01
