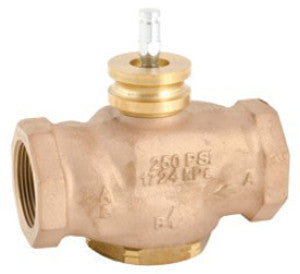

Schneider Electric VG310R-32B Globe Valve 3-Way DN32 Replacement MPN

Product Description

The Schneider Electric VG310R-32B is a three-way globe valve designed for efficient flow control. It features a body size of thirty-two millimeters and is constructed with brass trim and a PTFE seat seal. This valve is suitable for various media including glycol, steam, and water. The stem flow action is designed to close port A and open port B to AB.

• Construction: Brass trim.
• Flow capacity: Seventeen cubic meters per hour.
• Internal thread connection: Rp 1-1/4.

Product Highlights

This valve is suitable for diverse applications, especially in HVAC systems and plumbing installations.

Product Information

Standard Information

• Brand: Schneider Electric
• Product Line: Venta
• Origin: US

Technical Specifications

• Body Size: 32 mm
• Configuration: 3-Way
• Flow Coefficient: 17 kvs
• Stem Flow Action: Stem up closes A and opens B to AB
• Control Media: Glycol 25% to 60%, Steam, Water
• Height: 15.748 cm
• Width: 13.716 cm
• Length: 6.096 cm
• Weight: 1.928 kg
